Front Seat Belt Guide, Removing And Installing: Removing
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2018 Audi S6, 2018 Audi A6 Quattro, 2018 Audi A6, 2017 Audi S6, and 2017 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the upper B-pillar trim panel. Refer to UPPER B-PILLAR TRIM, REMOVING AND INSTALLING .
-- Set aside the upper B-pillar trim with the seat belt still threaded through it.
-- Remove the lower B-pillar trim panel. Refer to LOWER B-PILLAR TRIM PANEL, REMOVING AND INSTALLING .
-- Remove the B-pillar air guide. Refer to [For engine(s) CTUA, CAED, CREH, CEUC, CTGE, CREC, CYNB, CPNB] Air Conditioning[For engine(s) CTUA, CAED, CREH, CEUC, CTGE, CREC, CYNB, CPNB] Air ConditioningAir ConditioningAir ConditioningAir Conditioning .

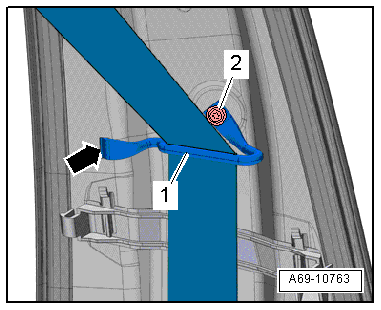

-- Remove the bolt -2-.
-- Disengage the front seat belt guide -1- on the B-pillar -arrow- and remove it.
