Multi-Contour Seat

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2018 Audi S6, 2018 Audi A6 Quattro, 2018 Audi A6, 2017 Audi S6, and 2017 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

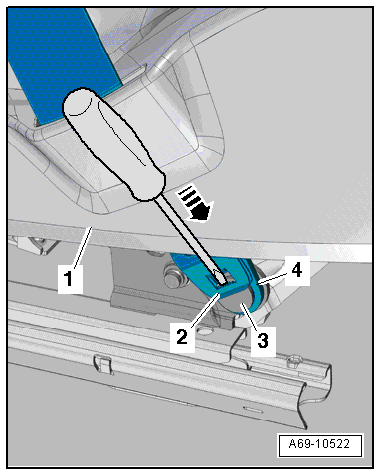

GWWA69-10522Courtesy of AUDI OF AMERICA, LLC
CAUTION:
  • The spring -2- will get bent if it is removed incorrectly. Replace the three-point seat belt if the spring gets bent.
  • Move the spring -2- just far enough until it is possible to unlock the tab on the spring.

-- Release the spring catches -2- by inserting a small screwdriver in the opening in the spring -arrow-.

-- Move the belt anchor -4- down and detach at the pin -3-.

-- Feed the belt anchor out up through the trim on the sill side -1-.
