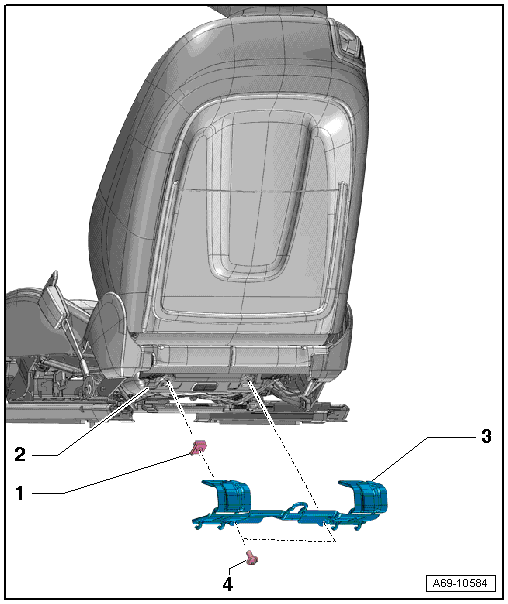

Overview - Front Latch Child Seat Anchors
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2018 Audi S6, 2018 Audi A6 Quattro, 2018 Audi A6, 2017 Audi S6, and 2017 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
- Spring Nut
- Quantity: 2
- Inserted in the seat pan
- Replace any damaged or deformed threaded clips
- Seat Pan
- Seat Anchor
- Passenger seat only
- Bolted with the seat pan
- Check after an accident. Refer to CHILD SEAT ANCHORS, CHECKING AFTER COLLISION .
- Replace damaged or deformed child seat anchor
- Removing and installing. Refer to FRONT LATCH CHILD SEAT ANCHOR, REMOVING AND INSTALLING .
- Bolt
- 8 Nm
- Quantity: 2
- Replace
