Disconnecting and Connecting

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2018 Audi S6, 2018 Audi A6 Quattro, 2018 Audi A6, 2017 Audi S6, and 2017 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

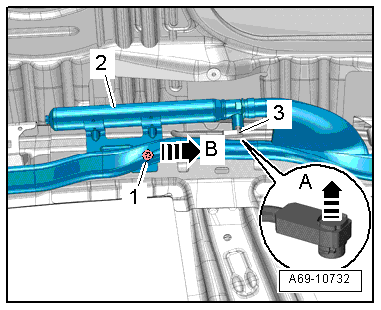

GWWA69-10732Courtesy of AUDI OF AMERICA, LLC
WARNING:

Before handling pyrotechnic components (for example, disconnecting the connector), the person handling it must "discharge static electricity". This can be done by touching the door striker, for example.

-- Release the connector lock using a small screwdriver in direction of -arrow A- and disconnect the connector -3-.

-- Remove the bolt -1- from the gas generator.

-- Push the head curtain airbag -2- forward in direction of -arrow B- and remove it from the mount.
