Airbag Unit With Igniter, Removing And Installing: Removing

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2018 Audi S6, 2018 Audi A6 Quattro, 2018 Audi A6, 2017 Audi S6, and 2017 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

WARNING:

Follow all Safety Precautions when working with pyrotechnic components. Refer to SAFETY PRECAUTIONS WHEN WORKING WITH PYROTECHNIC COMPONENTS .
Follow all regulations when disposing of pyrotechnic components. Refer to AIRBAG, BELT TENSIONER AND BATTERY CUT-OUT UNITS, STORING, TRANSPORTING AND DISPOSING (PYROTECHNIC COMPONENTS) .

-- Move the steering wheel as far down as possible.

-- Disconnect the battery ground cable with the ignition turned on. Refer to BATTERY .

-- Turn the steering wheel so the opening on the rear side of it faces upward. This is approximately the 12:00 position.

Courtesy of AUDI OF AMERICA, LLC

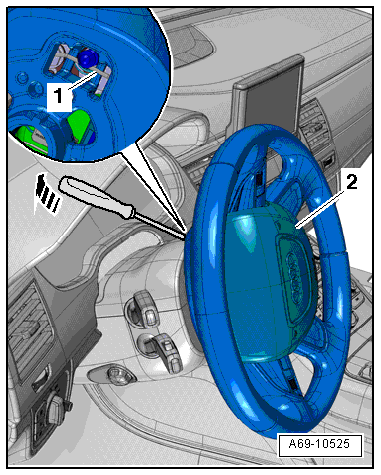

-- Releases the locking bracket -1- for the driver side airbag -2- -arrow-. Use a T25 TORX^® screwdriver, approximately 100 mm long.

NOTE:

Electrical wires can be damaged with a flat-head screwdriver.

-- Turn the steering wheel 180° and repeat the procedure on the opposite side.

-- Bring the steering wheel back into the center (wheels are straight).

Courtesy of AUDI OF AMERICA, LLC

WARNING:

Before handling pyrotechnic components (for example, disconnecting the connector), the person handling it must "discharge static electricity". This can be done by touching the door striker, for example.

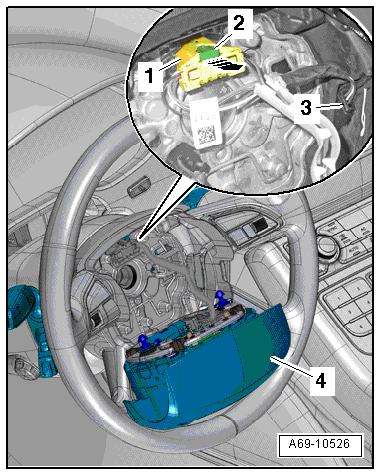

-- Remove the driver airbag -4- from the steering wheel slightly.

-- Pull out the connector lock -2- -arrow- and press it down, disconnect the connector -1-.

-- Vehicles with a multifunction and Tiptronic steering wheel: Disconnect the connector -3-.

-- Remove the airbag.

WARNING:

Set the airbag down so the impact cushion faces upward.
