Versions with 4-Spoke Steering Wheel
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2018 Audi S6, 2018 Audi A6 Quattro, 2018 Audi A6, 2017 Audi S6, and 2017 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
Before handling pyrotechnic components (for example, disconnecting the connector), the person handling it must "discharge static electricity". This can be done by touching the door striker, for example.

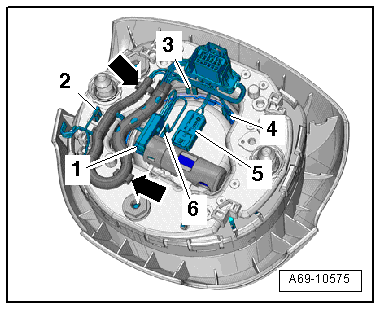

-- Unclip the wiring harness from the brackets -arrows-.
-- Disconnect the connectors -2, 3, 4 and 6- by releasing the tabs.
-- Disconnect the connectors -1 and 5- for the Driver Airbag Igniter -N95- /Driver Airbag Release Valve Igniter -N490-.
-- Release the connector lock -2- with a small screwdriver -arrow- and disconnect the connector -1-.
