Front Passenger Occupant Detection Sensor -G128-, REMOVING AND INSTALLING: Removing

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2018 Audi S6, 2018 Audi A6 Quattro, 2018 Audi A6, 2017 Audi S6, and 2017 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

WARNING:

Follow all Safety Precautions when working with pyrotechnic components. Refer to SAFETY PRECAUTIONS WHEN WORKING WITH PYROTECHNIC COMPONENTS .
Before handling pyrotechnic components (for example, disconnecting the connector), the person handling it must "discharge static electricity". This can be done by touching the door striker, for example.

-- Disconnect the battery Ground (GND) cable with the ignition turned on. Refer to BATTERY .

-- Remove the front passenger seat. Refer to FRONT SEAT, REMOVING AND INSTALLING .

-- Fasten the front seat on the :VAS6136 . Refer to FRONT SEAT, MOUNTING ON FIXTURE FOR SEAT REPAIR .

-- Remove the padding from the rear part of the seat cover until the passenger occupant detection sensor is freed up (seat pan). Refer to SEAT PAN COVER AND CUSHION, SEPARATING .

-- Disconnect the connector for the passenger occupant detection system sensor.

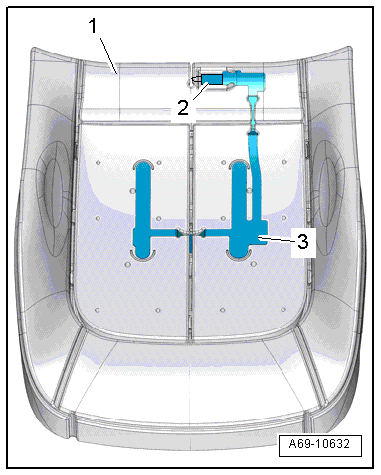

Manual or Power Standard Seat/Sport Seat/Super Sport Seat

Courtesy of AUDI OF AMERICA, LLC

-- If equipped, carefully warm the seat-heating element using the :VAS1978/14A .

-- Remove the seat heating element just far enough until the passenger occupant detection system sensor is free.

-- Carefully detach the passenger occupant detection sensor -3- with the circuit board -2- from the seat cushion -1-.

Multi-Contour Seat

Courtesy of AUDI OF AMERICA, LLC

-- Carefully detach the passenger occupant detection system sensor -1- with circuit board -2- from the seat cushion -3-.
