Front Airbag Crash Sensor -G283- / -G284-, Removing And Installing: Removing

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2018 Audi S6, 2018 Audi A6 Quattro, 2018 Audi A6, 2017 Audi S6, and 2017 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

WARNING:

Follow all Safety Precautions when working with pyrotechnic components. Refer to SAFETY PRECAUTIONS WHEN WORKING WITH PYROTECHNIC COMPONENTS .

There is a risk of injury if the engine starts automatically in vehicles with the Start/Stop System.

For vehicles with an activated Start/Stop system (recognized by a signal in the instrument cluster), the engine can be started automatically if needed.
Make sure that the start/stop system is deactivated when working on the vehicle (turn off the ignition, turn on the ignition when necessary).

-- Disconnect the battery Ground (GND) cable with the ignition turned on. Refer to BATTERY .

-- Remove the front wheel housing liner. Refer to WHEEL HOUSING LINER .

-- Remove the front wheel spoiler. Refer to FRONT WHEEL SPOILER, REMOVING AND INSTALLING .

Courtesy of AUDI OF AMERICA, LLC

WARNING:

Before handling pyrotechnic components (for example, disconnecting the connector), the person handling it must "discharge static electricity". This can be done by touching the door striker, for example.

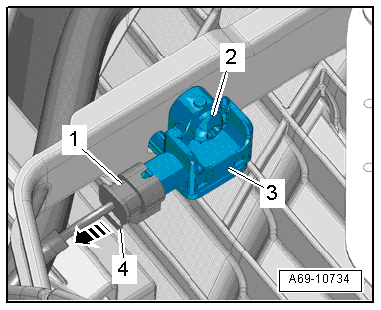

-- Remove the bolt -2- and the front airbag crash sensor -3-.

-- Pull out connector lock -4- -arrow- and press down, disconnect harness connector -1- at the crash sensor.
