Coolant Recirculation Pump -V50-, REMOVING AND INSTALLING: Removing

WARNING: This page is about a different car, the 2018 Audi A6 Quattro, 2017 Audi A6 Quattro, and 2016 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the engine cover. Refer to ENGINE COVER, REMOVING AND INSTALLING .

-- Drain the coolant. Refer to COOLANT, DRAINING AND FILLING .

-- Remove the plenum chamber bulkhead. Refer to BULKHEAD .

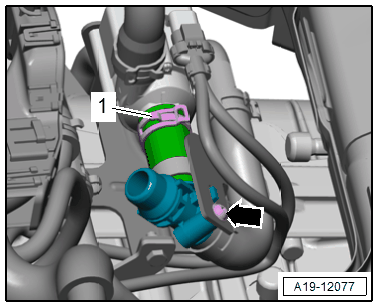

-- Remove the bolt -arrow-.

Courtesy of AUDI OF AMERICA, LLC

NOTE:

Place a cloth underneath to catch any escaping coolant.

-- Loosen the hose clamp -1- and remove the coolant hose.

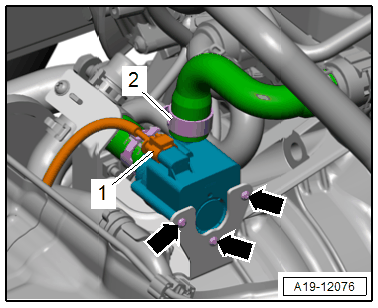

-- Disconnect the connector -1-.

Courtesy of AUDI OF AMERICA, LLC

NOTE:

Place a cloth underneath to catch any escaping coolant.

-- Loosen the clamp -2- and remove the coolant hose.

-- Remove the bolts -arrows- and the Coolant Recirculation Pump -V50-.
