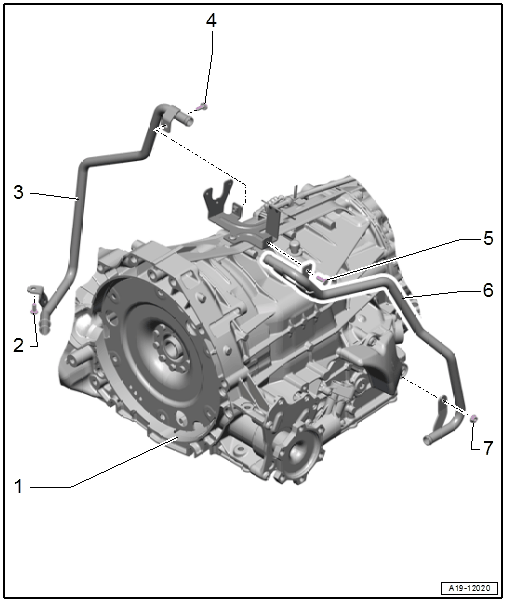

Coolant Pipe on the Transmission
WARNING: This page is about a different car, the 2018 Audi A6 Quattro, 2017 Audi A6 Quattro, and 2016 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
- Gear Mechanism
- Bolt
- 9 Nm
- Right Coolant Pipe on the Transmission
- Removing and installing. Refer to RIGHT COOLANT PIPE ON TRANSMISSION, REMOVING AND INSTALLING .
- Bolt
- 9 Nm
- Bolt
- 9 Nm
- Left Coolant Pipe on Transmission
- Removing and installing. Refer to LEFT COOLANT PIPE ON TRANSMISSION, REMOVING AND INSTALLING .
- Nut
- 9 Nm
