Map Controlled Engine Cooling Thermostat -F265-, REMOVING AND INSTALLING: Removing

WARNING: This page is about a different car, the 2018 Audi S6, 2017 Audi S6, and 2016 Audi S6. However, it is still accessible from the selected car via links, so may be relevant.

-- Drain the coolant. Refer to COOLANT, DRAINING AND FILLING .

-- If equipped remove the lower front left longitudinal member. Refer to OVERVIEW - IMPACT MEMBER .

-- Disconnect the connector -3-.

Courtesy of AUDI OF AMERICA, LLC

-- Open the clamp -1- and remove the coolant hose.

NOTE:

Ignore item -2-.

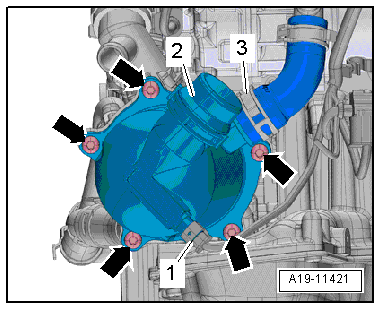

-- Disconnect the connector -1-.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the bolts -arrows-.

-- Loosen the hose clamp -3- to remove the coolant hose from the Map Controlled Engine Cooling Thermostat -F265-.
