Engine Coolant Temperature Sensor on Radiator Outlet -G83-, REMOVING AND INSTALLING: Removing

WARNING: This page is about a different car, the 2018 Audi S6, 2017 Audi S6, and 2016 Audi S6. However, it is still accessible from the selected car via links, so may be relevant.

Engine is cold.

-- Briefly open the coolant reservoir cap -arrow- to reduce the residual pressure in the coolant system.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the front noise insulation. Refer to NOISE INSULATION .

-- Remove the front left wheel spoiler. Refer to WHEEL HOUSING LINER .

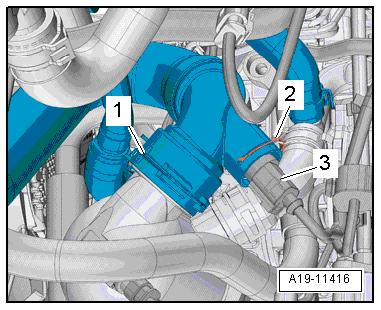

-- Disconnect the connector -3-.

Courtesy of AUDI OF AMERICA, LLC

NOTE:

Ignore item -1-.

Use a cloth to catch any leaking coolant.

-- Remove the clamp -2- and the Engine Coolant Temperature Sensor on Radiator Outlet -G83-.
