Upper Left Coolant Pipe, Removing And Installing: Removing
-- Empty the coolant circuit. Refer to A/C System with Refrigerant R134a.
-- Support the engine in its installed position. Refer to ENGINE, SUPPORTING IN INSTALLED POSITION .
-- Remove the noise insulations. Refer to NOISE INSULATION .
-- Drain the coolant. Refer to COOLANT, DRAINING AND FILLING .
-- Remove the front left and right wheel housing liners. Refer to WHEEL HOUSING LINER .
-- Remove the left and right front wheel spoiler. Refer to WHEEL HOUSING LINER .
-- Remove the left and right bolts -arrows- and the heat shield -1-.
-- Remove the left and right drive axles from the transmission flange shaft. Refer to DRIVE AXLE .
-- Disconnect the left and right connector -1- from the front vehicle level sensor -G78- / -G289- and free up the wire -arrow-.
Audi S6/S7
-- Remove the nut -1- and remove the bracket with the wiring harness from the subframe.
Ignore item -2-.
Audi RS6/RS7
-- Remove bolt -arrow-, push the bracket with the wiring harness aside.
Continuation for All Vehicles
-- Remove the steering intermediate shaft from the steering gear push them upward. Refer to STEERING INTERMEDIATE SHAFT, REMOVING AND INSTALLING .
-- Release the safety catch in direction of -arrow-, push the retainer down and disconnect the connector from -2- from the Power Steering Control Module -J500-.
-- Disconnect the connector -1- from the Power Steering Control Module -J500-.
-- Free up the wiring harness.
-- Free up the clip -arrow-.
-- Disconnect the connector -1- and free up the wire.
-- Loosen the hose clamps -arrows-, then clamp off the coolant hoses with the :3094 and remove the hoses.
Ignore -1 through 3-
-- Loosen the clamp -1- and remove the coolant hose.
-- Disconnect the connector -2- and free up the wire.
-- Disconnect the left and right connectors -1 and 2-.
-- Remove the connector -arrow- from the mount, disconnect it, and then guide it through the subframe.
-- Remove engine bracket left and right bolt -arrow-.
Audi RS6/RS7
-- Remove the left and right front longitudinal member. Refer to LOCK CARRIER .
Continuation for All Vehicles
-- Support the subframe using :VAS6931 as shown in the illustration.
-- Mark the location of the subframe to the longitudinal members using a felt-tip pen.
-- Remove the left and right subframe bolts -1, 2 and 3- in a diagonal sequence.
The suspension components could be damaged.
- Do not rest the vehicle on its wheels if the subframe mount, the steering gear or the subframe crossbrace are not installed correctly.
-- Lower the subframe using the :VAS6931 just enough so that the upper left coolant tube is accessible, while at the same time paying attention to the clearance for the right electrical cables.

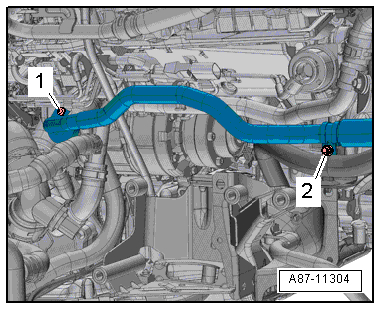

-- Remove the bolt -1- and the nut -2-, and set the refrigerant line to the side.
-- Remove the bolt -1- and then unclip and remove the oil dipstick tube -2- from the intake manifold.
-- Remove the double bolt -1- and the nut -2- and then push the mount -3- and the wiring harness slightly to the side.
-- Remove the bolts -arrows- and remove the left drive axle heat shield.
-- Free up the wiring harness.

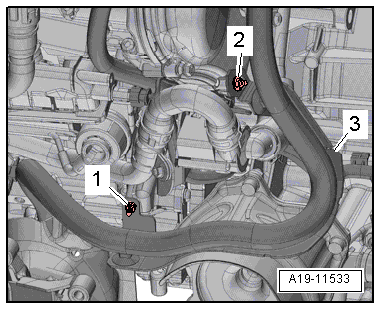

-- Remove the nut -3- and free up the hose clamp.
-- Loosen the clamps -arrows- to remove the coolant hose from the upper left coolant pipe -2-.
-- Unclip the upper left coolant pipe from the mount -1-.
