Right Coolant Pipe, Removing And Installing: Removing
WARNING: This page is about a different car, the 2018 Audi S6, 2017 Audi S6, and 2016 Audi S6. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the air filter housing. Refer to AIR FILTER HOUSING, REMOVING AND INSTALLING .
-- Remove the housing for the charge air cooler. Refer to CHARGE AIR COOLER HOUSING, REMOVING AND INSTALLING .

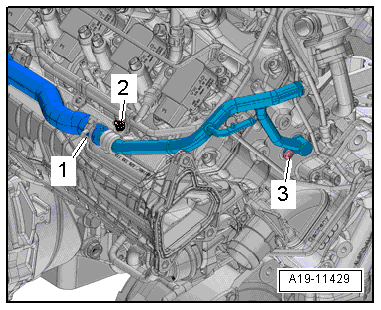

-- Loosen the clamp -1- and remove the coolant hose.
-- Remove the bolt -3- and the nut -2- and then remove the right coolant pipe from the cylinder head.
