Front Washer Nozzle: Adjustment

WARNING: This page is about a different car, the 2012 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.

Turn the wiper switch to OFF position.
While the vehicle is at a standstill, insert the washer nozzle adjustment tool (a) into upper side (c) and lower side (b) of the washer nozzle to perform necessary adjustment.

Fig 1: Adjusting Washer Nozzle Position
Courtesy of SUBARU OF AMERICA, INC.

CAUTION: Washer nozzle is made of resin. If precision screwdriver (A) or equivalent is inserted into discharge port for adjustment, the discharge port can be deformed, and washer fluid cannot be sprayed.

Fig 2: Inserting Screwdriver Into Discharge Port For Adjustment
Courtesy of SUBARU OF AMERICA, INC.
Adjust the injection position of the washer fluid as shown in the figure.
Injection position:
1. 250 mm (9.84 in)
2. 279 mm (10.99 in)

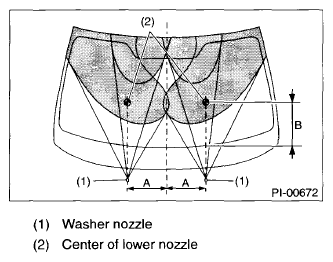

  Fig 3: Adjusting Washer Injection Position
  Courtesy of SUBARU OF AMERICA, INC.
