Left/Right Front Entry Lamp -W31- / -W32-, Removing And Installing: Removing
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2018 Audi S6, 2018 Audi A6 Quattro, 2018 Audi A6, 2017 Audi S6, and 2017 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

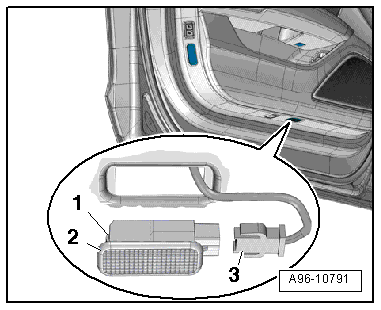

-- Use a flat-head screwdriver to press in the retaining tab -1- and pry out the entry lamp -2-.
 Courtesy of AUDI OF AMERICA, LLC
|
-- Disconnect the connector -3-.
-- If equipped, carefully pry out the cover over the lamp in direction of -arrow-.
 Courtesy of AUDI OF AMERICA, LLC
|
-- Remove the bulb -1- from the bulb socket -2- on the back of the door warning lamp.
 Courtesy of AUDI OF AMERICA, LLC
|
