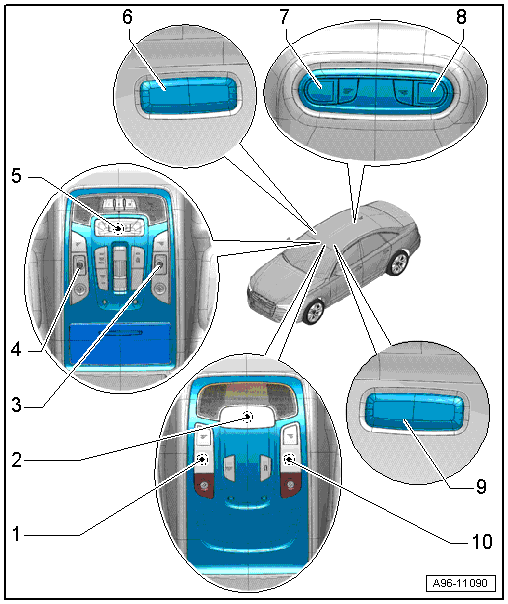

Component Location Overview - Roof Trim Panel Lamps
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2018 Audi S6, 2018 Audi A6 Quattro, 2018 Audi A6, 2017 Audi S6, and 2017 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
- Driver Reading Lamp -W19-
- "Basic"
- Replacing. Refer to FRONT PASSENGER/DRIVER READING LAMP -W13- / -W19-, REPLACING .
- Front Interior Lamp -W1-
- "Basic"
- Replacing. Refer to Front Interior Lamp -W1- /Front Passenger Reading Lamp -W13- /Driver Reading Lamp -W19-, REPLACING .
- Right Front Reading Lamp -W66-
- "Comfort"
- If the LED is faulty, then the interior lamp/reading lamp must be replaced.
- Left Front Reading Lamp -W65-
- "Comfort"
- If the LED is faulty, then the interior lamp/reading lamp must be replaced.
- Front Interior Lamp -W1-
- "Comfort"
- If the LED is faulty, then the interior lamp/reading lamp must be replaced.
- Front Passenger Vanity Mirror Lamp -W14-
- Removing and installing. Refer to DRIVER/FRONT PASSENGER VANITY MIRROR LAMP -W20- / -W14-, REMOVING AND INSTALLING .
- Left Rear Interior Lamp -W47-
"Basic"
- Replacing. Refer to LEFT/RIGHT REAR INTERIOR LAMP -W47- / -W48-, REPLACING .
"Comfort"
- The rear interior lamp must be replaced if one of the LEDs is faulty
- Replacing. Refer to LEFT/RIGHT REAR INTERIOR LAMP -W47- / -W48-, REPLACING .
- Right Rear Interior Lamp -W48-
"Basic"
- Replacing. Refer to LEFT/RIGHT REAR INTERIOR LAMP -W47- / -W48-, REPLACING .
"Comfort"
- The rear interior lamp must be replaced if one of the LEDs is faulty
- Replacing. Refer to LEFT/RIGHT REAR INTERIOR LAMP -W47- / -W48-, REPLACING .
- Driver Vanity Mirror Lamp -W20-
- Removing and installing. Refer to DRIVER/FRONT PASSENGER VANITY MIRROR LAMP -W20- / -W14-, REMOVING AND INSTALLING .
- Front Passenger Reading Lamp -W13-
- "Basic"
- Replacing. Refer to FRONT PASSENGER/DRIVER READING LAMP -W13- / -W19-, REPLACING .
