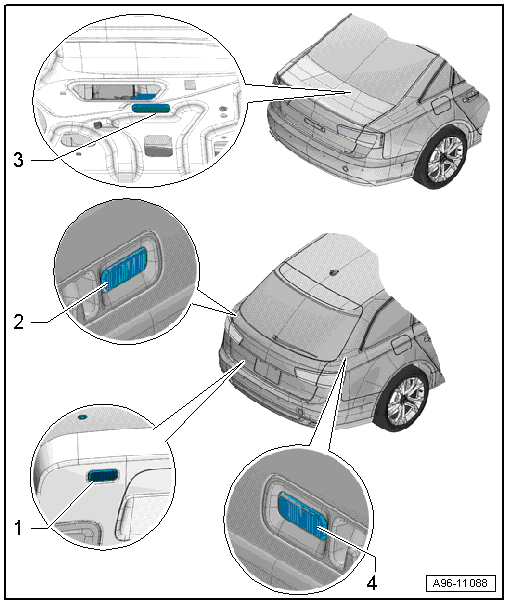

Component Location Overview - Luggage Compartment Lamps
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2018 Audi S6, 2018 Audi A6 Quattro, 2018 Audi A6, 2017 Audi S6, and 2017 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
- Luggage Compartment Lamp -W3- - Avant
- In the rear lid
- Removing and installing. Refer to Luggage Compartment Lamp -W3-, REMOVING AND INSTALLING, AVANT .
- Luggage Compartment Lamp -W3- - Avant
- In the left luggage compartment trim panel
- 12 V, 5 W
- Removing and installing. Refer to Luggage Compartment Lamp -W3-, REMOVING AND INSTALLING, AVANT .
- Luggage Compartment Lamp -W3- - Sedan
- In luggage compartment trim panel at the top
- 12 V, 5 W
- Removing and installing. Refer to Luggage Compartment Lamp -W3-, REMOVING AND INSTALLING .
- Luggage Compartment Lamp -W3- - Avant
- In the right luggage compartment trim panel
- 12 V, 5 W
- Removing and installing. Refer to Luggage Compartment Lamp -W3-, REMOVING AND INSTALLING, AVANT .
