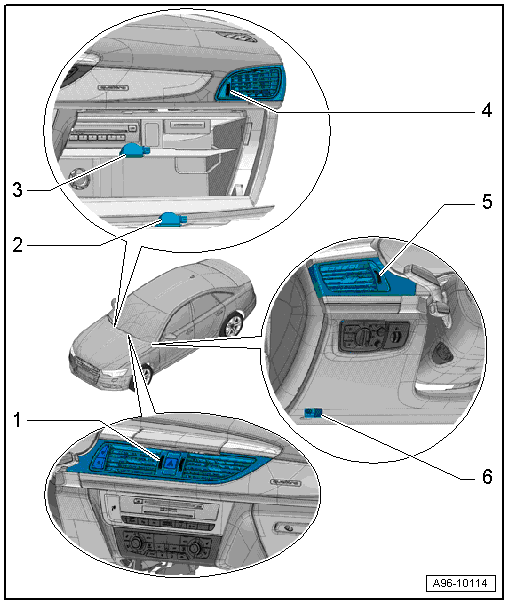

Component Location Overview - Instrument Panel Lamps
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2018 Audi S6, 2018 Audi A6 Quattro, 2018 Audi A6, 2017 Audi S6, and 2017 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
- Center Instrument Panel Vent
- Vehicles with left and right Center Instrument Panel Vent Illumination Bulb -L68-
- Cannot be replaced separately if faulty.
- Replacing. Refer to INSTRUMENT PANEL VENT, REMOVING AND INSTALLING .
- Right Front Footwell Illumination Bulb -L152-
- Removing and installing. Refer to LEFT/RIGHT FRONT FOOTWELL ILLUMINATION BULB -L151- / -L152-, REMOVING AND INSTALLING .
- Glove Compartment Lamp -W6-
- 12 V, 5 W
- Removing and installing. Refer to Glove Compartment Lamp -W6-, REMOVING AND INSTALLING .
- Right Instrument Panel Vent Illumination Bulb -L69-
- Equipment level
- Cannot be replaced separately if faulty.
- Replacing. Refer to INSTRUMENT PANEL VENT, REMOVING AND INSTALLING .
- Left Instrument Panel Vent Illumination Bulb -L67-
- Equipment level
- Cannot be replaced separately if faulty.
- Replacing. Refer to INSTRUMENT PANEL VENT, REMOVING AND INSTALLING .
- Left Front Footwell Illumination Bulb -L151-
- Removing and installing. Refer to LEFT/RIGHT FRONT FOOTWELL ILLUMINATION BULB -L151- / -L152-, REMOVING AND INSTALLING .
