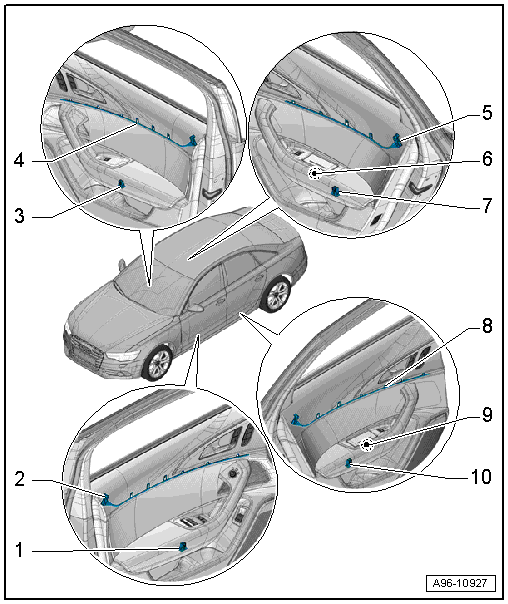

Component Location Overview - Door Ambient Lighting
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2018 Audi S6, 2018 Audi A6 Quattro, 2018 Audi A6, 2017 Audi S6, and 2017 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
- Driver Door Storage Compartment Illumination Bulb -L160-
- Removing and installing. Refer to DRIVER/FRONT PASSENGER DOOR STORAGE COMPARTMENT ILLUMINATION BULB -L160- / -L161-, REMOVING AND INSTALLING .
- Driver Door Ambient Lighting Bulb -L164-
- Removing and installing. Refer to DRIVER/FRONT PASSENGER DOOR AMBIENT LIGHTING BULB -L164- / -L165-, REMOVING AND INSTALLING .
- Front Passenger Door Storage Compartment Illumination Bulb -L161-
- Removing and installing. Refer to DRIVER/FRONT PASSENGER DOOR STORAGE COMPARTMENT ILLUMINATION BULB -L160- / -L161-, REMOVING AND INSTALLING .
- Front Passenger Door Ambient Lighting Bulb -L165-
- Removing and installing. Refer to DRIVER/FRONT PASSENGER DOOR AMBIENT LIGHTING BULB -L164- / -L165-, REMOVING AND INSTALLING .
- Right Rear Door Ambient Lighting Bulb -L167-
- Removing and installing. Refer to LEFT/RIGHT REAR DOOR AMBIENT LIGHTING BULB -L166- / -L167-, REMOVING AND INSTALLING .
- Right Rear Ashtray Illumination Bulb -L49-
- Removing and installing. Refer to LEFT/RIGHT REAR ASHTRAY ILLUMINATION BULB -L48- / -L49-, REMOVING AND INSTALLING .
- Right Rear Door Storage Compartment Illumination Bulb -L171-
- Removing and installing. Refer to LEFT/RIGHT REAR DOOR STORAGE COMPARTMENT ILLUMINATION BULB -L170- / -L171-, REMOVING AND INSTALLING .
- Left Rear Door Ambient Lighting Bulb -L166-
- Removing and installing. Refer to LEFT/RIGHT REAR DOOR AMBIENT LIGHTING BULB -L166- / -L167-, REMOVING AND INSTALLING .
- Left Rear Ashtray Illumination Bulb -L48-
- Removing and installing. Refer to LEFT/RIGHT REAR ASHTRAY ILLUMINATION BULB -L48- / -L49-, REMOVING AND INSTALLING .
- Left Rear Door Storage Compartment Illumination Bulb -L170-
- Removing and installing. Refer to LEFT/RIGHT REAR DOOR STORAGE COMPARTMENT ILLUMINATION BULB -L170- / -L171-, REMOVING AND INSTALLING .
