Center Armrest Illumination Bulb -L157-, REMOVING AND INSTALLING: Removing
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2018 Audi S6, 2018 Audi A6 Quattro, 2018 Audi A6, 2017 Audi S6, and 2017 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the center console. Refer to CENTER CONSOLE, REMOVING AND INSTALLING .

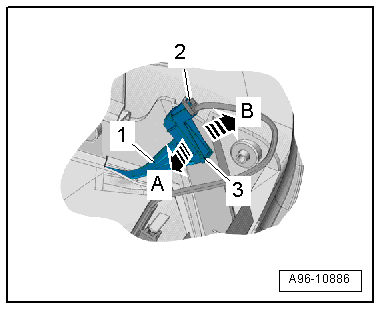

-- Remove the bulb -3- from the center console in direction of -arrow A- and from the lighting strip -1- at the same time in direction of -arrow B-.
-- Disconnect the connector -2-.
