Rear Center Console Ambient Lighting Contact Switch -F501-, REMOVING AND INSTALLING: Removing

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2018 Audi S6, 2018 Audi A6 Quattro, 2018 Audi A6, 2017 Audi S6, and 2017 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the rear center armrest. .

-- Remove the center armrest trim panel. .

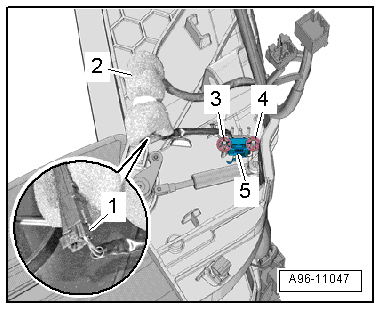

-- Pull the protective sleeve -2- to the side and disconnect the connector -1-.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the lock washers -3 and 4-.

-- Remove the contact switch -5- from the mount.
