Headlamp Range Control Adjuster -E102-, REMOVING AND INSTALLING: Removing
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2018 Audi S6, 2018 Audi A6 Quattro, 2018 Audi A6, 2017 Audi S6, and 2017 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

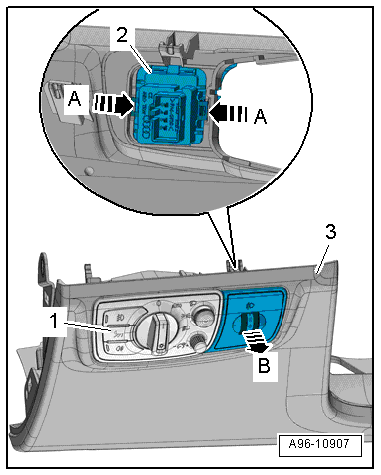

-- Remove the light switch -1-. Refer to Light Switch -E1-, REMOVING AND INSTALLING .
-- Remove the headlamp range control adjuster -2- from the driver side instrument panel cover in direction of -arrow B-. The tabs are opened when doing this in direction of -arrows A-.
NOTE:
If the headlamp range control adjuster cannot be removed as described, then the driver side instrument panel cover must be removed. Refer to DRIVER SIDE INSTRUMENT PANEL COVER, REMOVING AND INSTALLING .
