Cigarette Lighter -U1-, REMOVING AND INSTALLING: Removing

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2018 Audi S6, 2018 Audi A6 Quattro, 2018 Audi A6, 2017 Audi S6, and 2017 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the front ashtray. Refer to FRONT ASHTRAY, REMOVING AND INSTALLING .

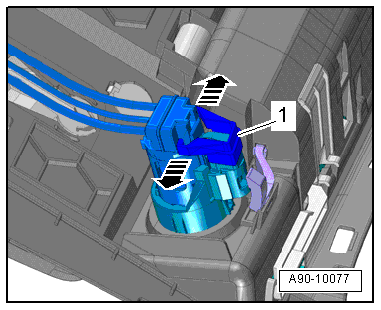

-- Pry off the cover -1- over the Cigarette Lighter Illumination Bulb -L28- in direction of -arrows-.

Courtesy of AUDI OF AMERICA, LLC

-- The release tabs -2- on the :T40148 must engage in the openings on the cigarette lighter -3- in direction of -arrow-. To do so, the threaded rod -1- must be slid all the way down.

Courtesy of AUDI OF AMERICA, LLC

-- Slide the :T40148 all the way into the cigarette lighter -1-.

Courtesy of AUDI OF AMERICA, LLC

-- Turn the thumbwheel -2- on the :T40148 clockwise all the way to the end stop.

The piston -2- is pulled upward and the release tabs -1- on the :T40148 spread in direction of -arrows-.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the cigarette lighter using the :T40148 from the illumination ring with the Cigarette Lighter Illumination Bulb -L28-.

-- Release the clips in direction of -arrows-.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the cigarette lighter and illumination ring -1- from the front ashtray -2-.

-- Guide the wire out through the mount.
