ATF, Draining And Filling: Draining
WARNING: This page is about a different car, the 2018 Audi A6, 2017 Audi A6, and 2016 Audi A6. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Replace the ATF drain plug and sealing plug for the inspection and fill hole.
- The engine is off.
- Move vehicle onto a four-pillar shop hoist or over a work pit so that it is absolutely horizontal.
- The selector level is in "P".
- The parking brake button should be activated to close the electro-mechanical parking brake.
-- Remove the rear noise insulation. Refer to UNDERBODY TRIM PANELS, REMOVING AND INSTALLING .
-- Place the :SMN372500 underneath.
-- Connect the Vehicle Diagnostic Tester with the vehicle and start the Diagnostic mode.
- Select Vehicle Test
- 02-Transmission Electronics, Functions
- 02-ATF Level → Drain ATF
-- Follow the instructions in the display.
WARNING:
Danger of eye injury.
- Wear protective eyewear.

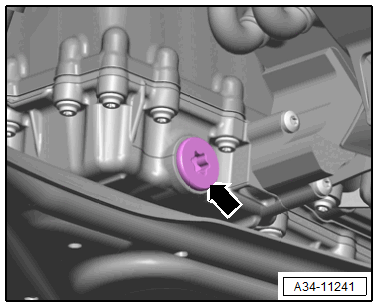

-- Remove the ATF drain plug -arrow- and let the ATF drain out.
CAUTION:
Danger of causing damage to the transmission.
- Do not start the engine when there is no ATF in the transmission.
NOTE:
Follow the disposal requirements.
-- Tighten the ATF drain plug.
-- Clean the subframe crossbrace and remove any remaining ATF.
