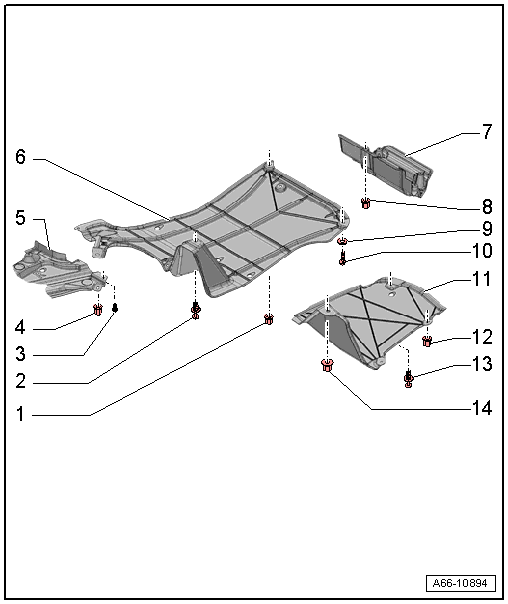

Overview - Rear Underbody Panels
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2018 Audi S6, 2018 Audi A6 Quattro, 2018 Audi A6, 2017 Audi S6, and 2017 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
- Nut
- 2.1 Nm
- Quantity: 2
- Expanding Clip
- Bolt
- 2.1 Nm
- Nut
- 2.1 Nm
- Rear Cover for the Right Underbody Cover
- Center Rear Cover
- Removing and Installing. Refer to CENTER COVER, REMOVING AND INSTALLING .
- Spare Wheel Well Front Cover
- Removing and Installing. Refer to FRONT COVER FOR SPARE TIRE WELL, REMOVING AND INSTALLING .
- Nut
- 2.1 Nm
- Quantity: 5
- Washer
- Quantity: 2
- Bolt
- 15 Nm
- Quantity: 2
- Right Rear Cover
- Removing and Installing. Refer to RIGHT REAR COVER, REMOVING AND INSTALLING .
- Nut
- 2.1 Nm
- Expanding Clip
- Nut
- 20 Nm
