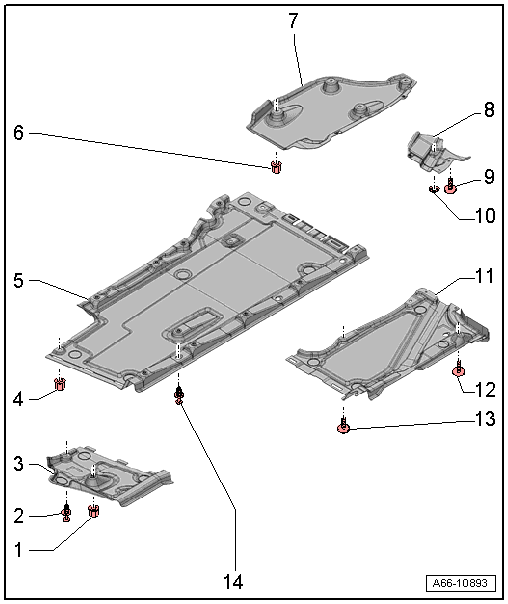

Overview - Front Underbody Panels
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2018 Audi S6, 2018 Audi A6 Quattro, 2018 Audi A6, 2017 Audi S6, and 2017 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
- Nut
- 2.1 Nm
- With fastener
- Expanding Clip
- Front Underbody Cover
- Removing and Installing. Refer to FRONT VEHICLE UNDERBODY COVER, REMOVING AND INSTALLING .
- Nut
- 2.1 Nm
- With fastener
- Quantity: 10
- Center Underbody Cover
- Removing and Installing. Refer to CENTER VEHICLE UNDERBODY COVER, REMOVING AND INSTALLING .
- Nut
- 2.1 Nm
- Quantity: 4
- Left rear cover
- Removing and Installing. Refer to LEFT REAR VEHICLE UNDERBODY COVER, REMOVING AND INSTALLING .
- Stone Chip Protective Molding
- Removing and Installing. Refer to STONE CHIP PROTECTIVE MOLDING, REMOVING AND INSTALLING .
- Bolt
- 2.1 Nm
- Clip
- Rear Underbody Cover
- Removing and Installing. Refer to REAR VEHICLE UNDERBODY COVER, REMOVING AND INSTALLING .
- Bolt
- 3.5 Nm
- Bolt
- 2.1 Nm
- Quantity: 4
- Expanding Clip
