Roof Railing, Removing And Installing
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2018 Audi S6, 2018 Audi A6 Quattro, 2018 Audi A6, 2017 Audi S6, and 2017 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
Use bolt locking fluid when installing the nuts.
- Roof Railing
- Removing
-- Lower the headliner. Refer to HEADLINER, REMOVING AND INSTALLING .
-- Loosen the head curtain airbag and move it to the side.
-- Remove the nuts and then lift the roof railing off the roof.
- Installing
-- Adjusting elements must be pushed into the roof and be in the installation position with slight pretension.
-- Position the roof railing on the roof so the threaded pins go through the adjusters.
- Follow the installation sequence:
-- Tighten both nuts on the inside first, and then tighten the nuts on the outside.

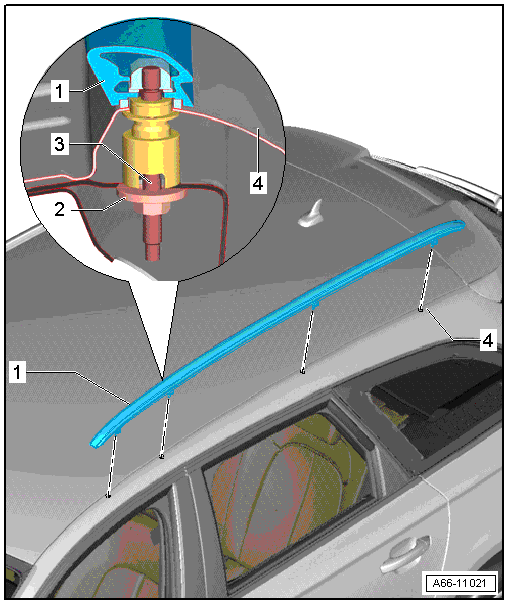

- Removing
- Nut
- Tightening specification. Refer to OVERVIEW - ROOF RAILING .
- Adjuster
- Insert front adjusting element into hole provided and slide it to the rear into installation position.
- Insert the remaining adjusting elements into hole provided and slide forward into installation position.
- Position the adjusting elements so that they contact the outer panel with light pre-tension of 0.4 Nm.
- Roof
