Overview - Side Sill Trim, ALLROAD Sill Panel

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2018 Audi S6, 2018 Audi A6 Quattro, 2018 Audi A6, 2017 Audi S6, and 2017 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

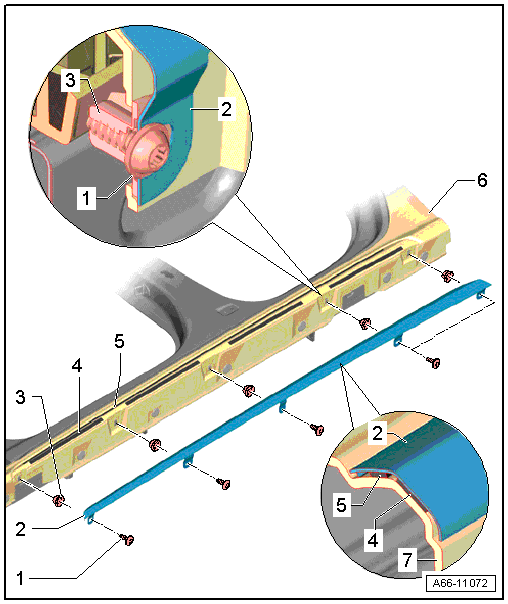

Fig 1: Side Sill Trim, Allroad Sill Panel Exploded View
GWWA66-11072Courtesy of AUDI OF AMERICA, LLC
  1. Bolt
    • 2.5 Nm
  2. Sill Panel
    NOTE:

    It is not possible to remove the sill panel without damaging it. It must be replaced.

    • Removing

      -- Remove the screws and then warm adhesive surfaces on the sill panel strip with a hot air gun.

      -- Remove the sill panel.

      -- Remove any remaining adhesive on the side sill trim panel completely.

    • Installing

      -- Clean the adhesive surfaces using Cleaning Solution :D 009 401 04  .

      -- Remove the peel-off backing from the tape.

      -- Insert the sill panel strip into the opening and then push it on by hand.

      -- Press the sill panel on the adhesive surface using the Roller :3356  .

      -- Tighten the bolts to the tightening specification.

  3. Grommet
  4. Upper Tape

    -- Sill panel delivery package.

  5. Lower Tap

    -- Sill panel delivery package.

  6. Side Sill Trim Panel
