Ribbed Belt, Removing And Installing: Installing

WARNING: This page is about a different car, the 2016 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

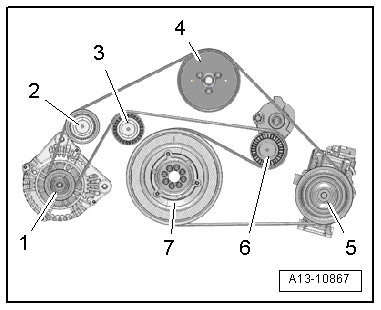

GWWA13-10867Courtesy of AUDI OF AMERICA, LLC

Install in reverse order of removal. Note the following:

-- Mount the ribbed belt over the pulley.

  1. Generator
  2. Idler roller
  3. Idler roller
  4. Coolant pump
  5. A/C compressor
  6. Ribbed belt tensioning damper
  7. Vibration damper
NOTE:

When installing the ribbed belt, make sure it is seated correctly on the pulleys.

-- Start the engine and check the belt routing.
