Typical Cold Start Fuel Reservoir And Fuel Injector

WARNING: This page does not describe the selected car, but rather 31 other vehicles, including the 2018 Lincoln Navigator, 2018 Lincoln MKZ, 2018 Lincoln MKX, 2018 Lincoln MKT, and 2018 Lincoln MKC. However, it is still accessible from the selected car via links, so may be relevant.

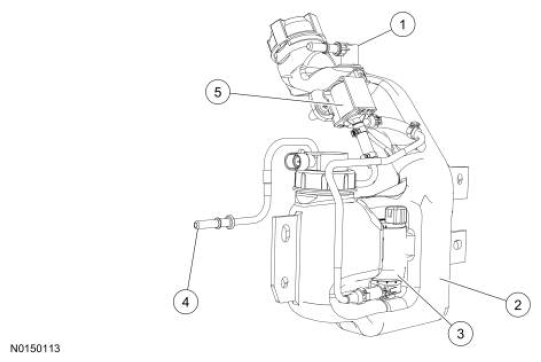

Fig 1: Cold Start Fuel Reservoir And Fuel Injector Parts Location
G10768987Courtesy of FORD MOTOR CO.
Item Number Description
1 - Vapor Fitting
2 - Cold Start Fuel Reservoir
3 - Cold Start Fuel Pump
4 - Cold Start Fuel Line
5 - Cold Start Valve
