Shock Absorber

WARNING: This page is about a different car, the 2012 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.

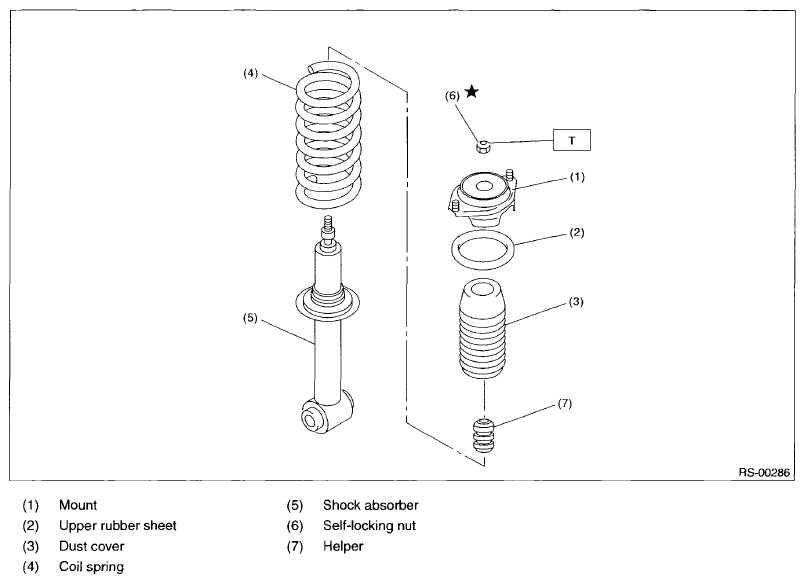

Fig 1: Shock Absorber Components With Torque Specification
G07681132Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T: 25 (2.55, 18.4)
