Reduction Drive Gear: Removal

WARNING: This page is about a different car, the 2012 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the transmission assembly from the vehicle. < Ref. to REMOVAL , Automatic Transmission Assembly. >
  2. Separate the extension case from the transmission case. < Ref. to REMOVAL , Extension Case. >
  3. Remove the reduction driven gear. < Ref. to REMOVAL , Reduction Driven Gear. >
  4. Using the ST, extract the reduction drive gear assembly.

    ST1 499737100 PULLER SET

    ST2 899524100 PULLER SET

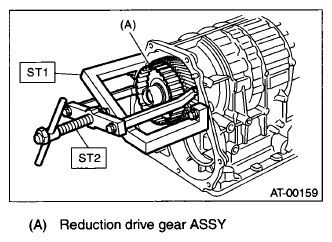

    Fig 1: Removing Reduction Driven Gear
    G07665616Courtesy of SUBARU OF AMERICA, INC.
