Removal And Installation
WARNING: This page is about a different car, the 2017 Lincoln Navigator and 2017 Ford Expedition. However, it is still accessible from the selected car via links, so may be relevant.

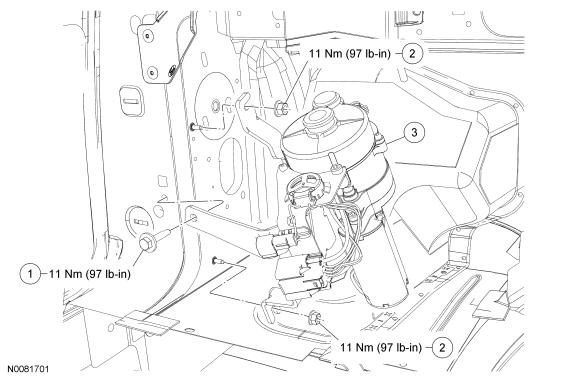

| Item | Part Number | Description |
|---|---|---|
| 1 | W505425 | Power liftgate motor retaining bolt |
| 2 | W520201 | Power liftgate motor retaining nuts (2 required) |
| 3 | 404C85 | Power liftgate motor assembly |
- 1.
Remove the power liftgate rod assembly. For additional information, refer to Power Liftgate Rod .
- 3.
Remove the power liftgate retaining fasteners and the power liftgate motor assembly.- To install, tighten the retaining bolt to 10.5 Nm (93 lb-in).
- To install, tighten the retaining nuts to 9 Nm (80 lb-in).
- 4.
To install, reverse the removal procedure.- Initialize the power liftgate. For additional information, refer to Power Liftgate Initialization .
