Check Buzzer: Wiring Diagram

WARNING: This page is about a different car, the 2012 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.

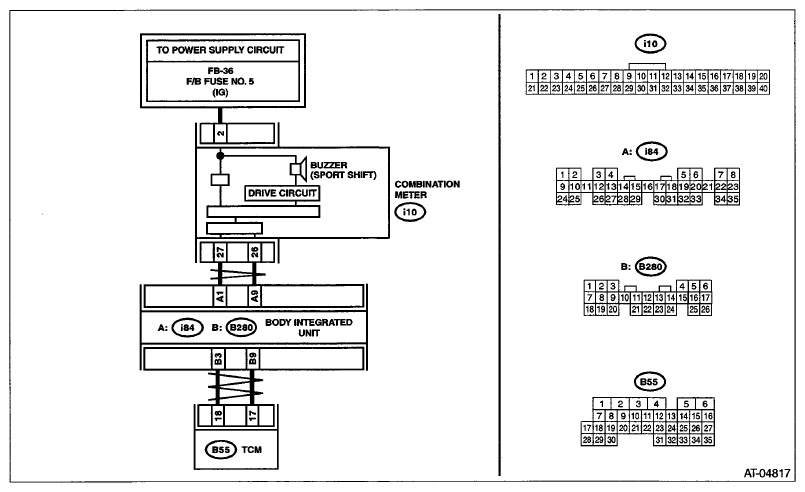

Fig 1: Buzzer Wiring Diagram
G07665861Courtesy of SUBARU OF AMERICA, INC.
DIAGNOSTIC PROCEDURE CHART

Step Check Yes No
1 CHECK BODY INTEGRATED UNIT.
  1. Turn the ignition switch to OFF.
  2. Connect the Subaru Select Monitor to data link connector.
  3. Turn the ignition switch to ON.
  4. Run the Subaru Select Monitor.
  5. Using the Subaru Select Monitor, read the data of "SPORT shift (buzzer 1)" and "SPORT shift (buzzer 2)".
 Is "ON" displayed? Replace the TCM. < Ref. to TRANSMISSION CONTROL MODULE (TCM) . > Go to step 2  .
2 CHECK COMBINATION METER.
< Ref. to INSPECTION , Combination Meter System. >		 Is the buzzer OK? Refer to "Diagnostics with Phenomenon". < Ref. to DIAGNOSTICS WITH PHENOMENON . > Replace the combination meter assembly. < Ref. to COMBINATION METER . >
