Radiator Main Fan and Fan Motor: Removal

WARNING: This page is about a different car, the 2012 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the ground cable from battery.

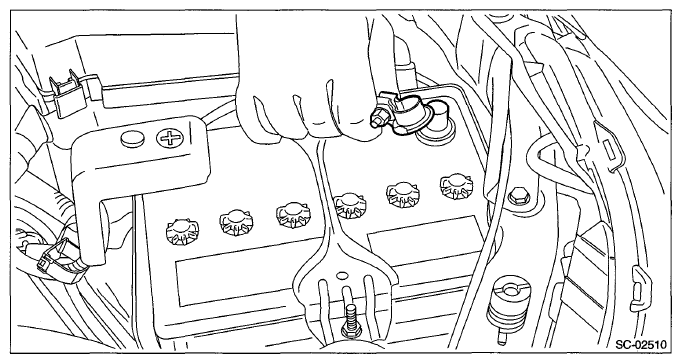

    Fig 1: Disconnecting Ground Cable From Battery
    G07665052Courtesy of SUBARU OF AMERICA, INC.
  2. Remove the reservoir tank. < Ref. to REMOVAL , Reservoir Tank. >
  3. Disconnect the connector (A) from the main fan motor assembly.

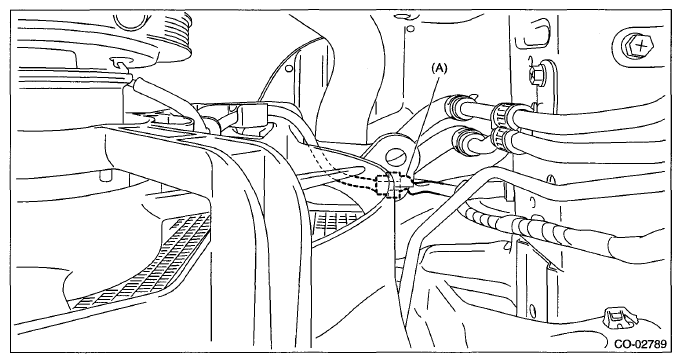

    Fig 2: Main Fan Motor Assembly Connector
    G07665053Courtesy of SUBARU OF AMERICA, INC.
  4. Remove the ATF hose from the clip of the radiator main fan shroud. (AT model)
  5. Remove the bolts which hold the radiator main fan shroud onto the radiator.

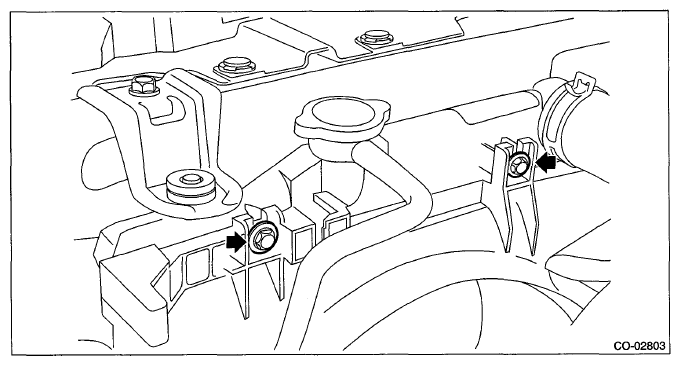

    Fig 3: Locating Radiator Main Fan Shroud Bolts
    G07665054Courtesy of SUBARU OF AMERICA, INC.
  6. Remove the radiator main fan and fan motor from vehicle.
