Tumble Generator Valve Actuator: Removal

WARNING: This page is about a different car, the 2012 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the ground cable from battery.

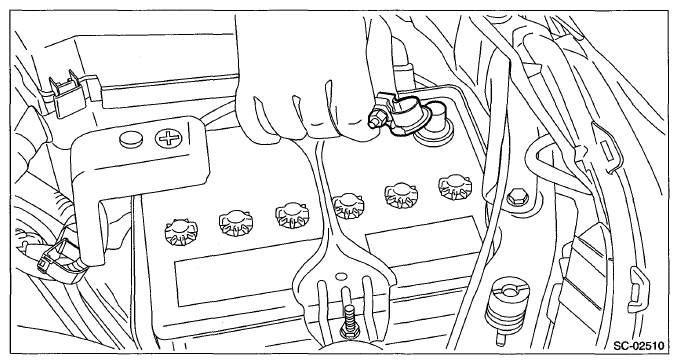

Fig 1: Disconnecting Ground Cable From Battery
Courtesy of SUBARU OF AMERICA, INC.
Disconnect the connector (A) from tumble generator valve assembly, and remove the tumble generator valve actuator.
- LH side

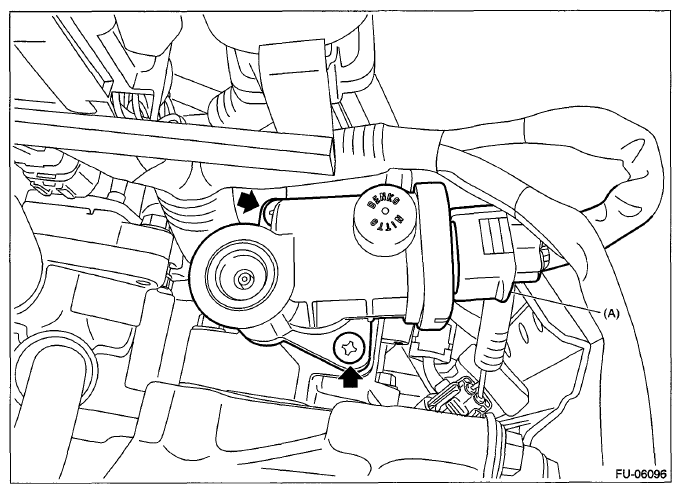

  Fig 2: Locating Tumble Generator Valve Actuator And Connector (LH Side)
  Courtesy of SUBARU OF AMERICA, INC.
- RH side

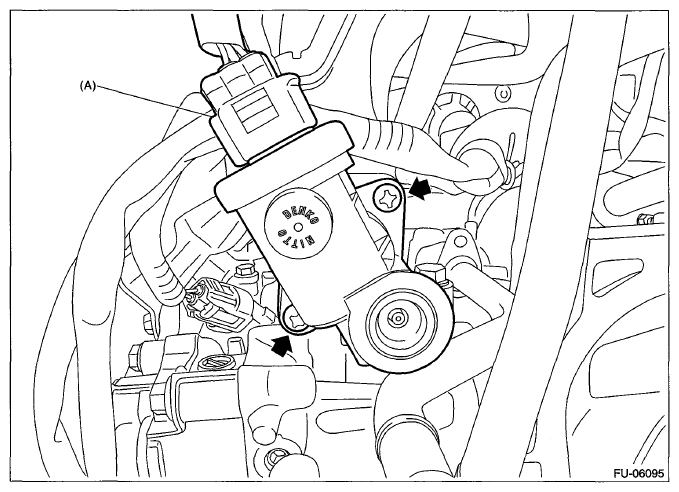

  Fig 3: Locating Tumble Generator Valve Actuator And Connector (RH Side)
  Courtesy of SUBARU OF AMERICA, INC.
