Evaporation Pipe Installation

WARNING: This page is about a different car, the 2012 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.

Install the evaporation pipe to the vehicle.
Tightening torque:

7.5 N.m (0.8 kgf-m, 5.5 ft-lb)

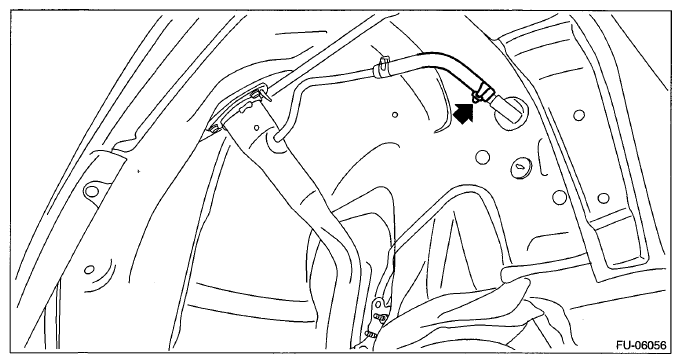

Fig 1: Locating Evaporation Hose
Courtesy of SUBARU OF AMERICA, INC.
Install the evaporation pipe protector.
Tightening torque:

7.5 N.m (0.8 kgf-m, 5.5 ft-lb)

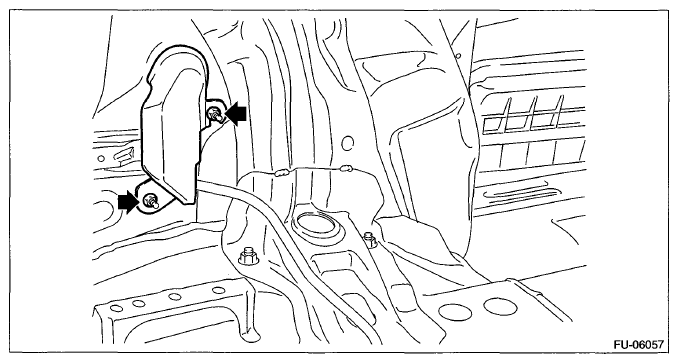

Fig 2: Locating Evaporation Pipe Protector Mounting Screw
Courtesy of SUBARU OF AMERICA, INC.
Install the right side rear quarter trim. < Ref. to INSTALLATION , Rear Quarter Trim. >
Connect the evaporation hose.

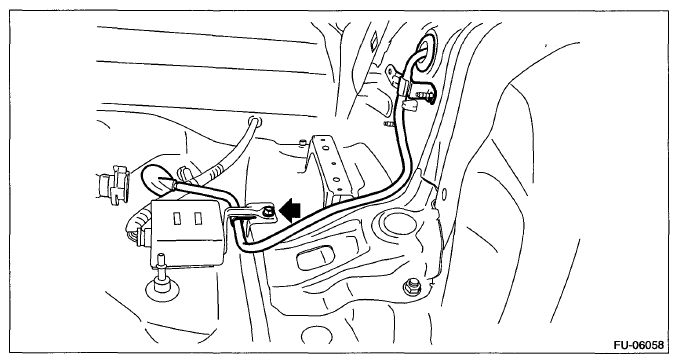

Fig 3: Locating Evaporation Hose
Courtesy of SUBARU OF AMERICA, INC.
Install the rear mud guard RH. < Ref. to INSTALLATION , Mud Guard. >
