Air By-pass Valve: Removal

WARNING: This page is about a different car, the 2012 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the collector cover.
  2. Disconnect the air by-pass pipe (A) and vacuum hose (B) from the air by-pass valve, and remove the air by-pass valve from the intercooler.

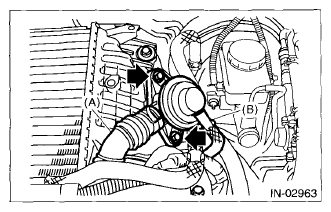

    Fig 1: Locating Air By-Pass Valve Bolts
    G07680940Courtesy of SUBARU OF AMERICA, INC.
