Removal And Installation

WARNING: This page is about a different car, the 2016 Ford Expedition. However, it is still accessible from the selected car via links, so may be relevant.
WARNING: The following procedure prescribes critical repair steps required for correct restraint system operation during a crash. Follow all notes and steps carefully. Failure to follow step instructions may result in incorrect operation of the restraint system and increases the risk of serious personal injury or death in a crash.

  1. 1.

    Depower the SRS. For additional information, refer to Supplemental Restraint System (SRS) Depowering and Repowering .

  1. 2.

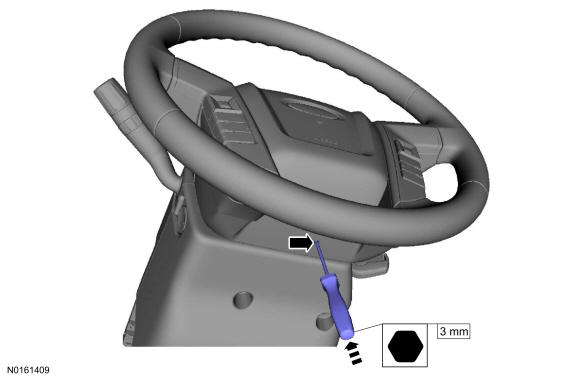

    At the bottom of the steering wheel cover, locate the hole and insert the hexagonal screwdriver.
GFD137989Courtesy of FORD MOTOR COMPANY

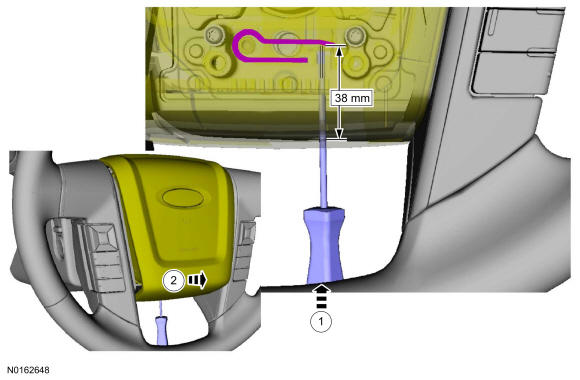

  1. 3.

    Detach the driver airbag from the steering wheel.

    1. 1.

      Push in on the hexagonal screwdriver, disengaging the spring clip from the driver airbag retainer.

    1. 2.

      Pull the driver airbag out.
GFD137990Courtesy of FORD MOTOR COMPANY

  1. 4.

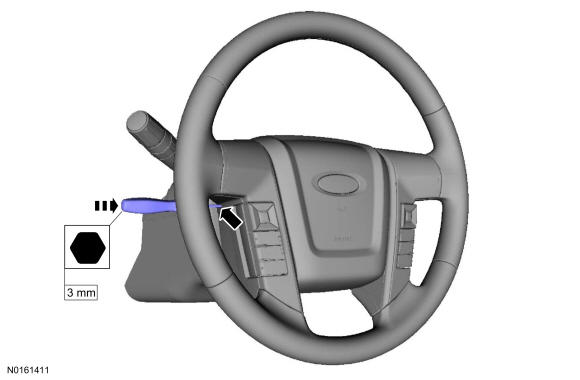

    At the LH side of the steering wheel cover, locate the hole and insert the hexagonal screwdriver.
GFD137991Courtesy of FORD MOTOR COMPANY

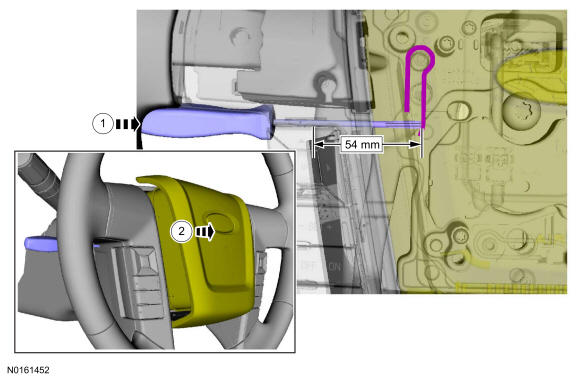

  1. 5.

    Detach the driver airbag from the steering wheel.

    1. 1.

      Push in on the hexagonal screwdriver, disengaging the spring clip from the driver airbag retainer.

    1. 2.

      Pull the driver airbag out.
GFD137992Courtesy of FORD MOTOR COMPANY

  1. 6.

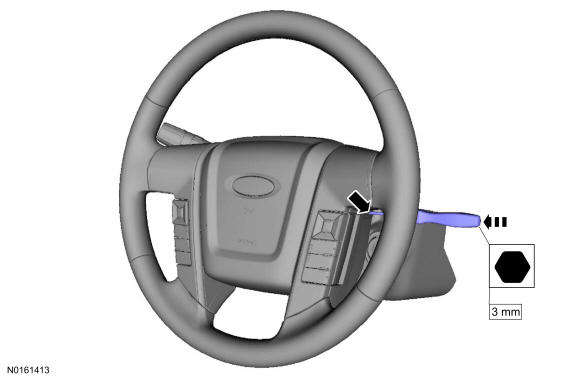

    At the RH side of the steering wheel cover, locate the hole and insert the hexagonal screwdriver.
GFD137993Courtesy of FORD MOTOR COMPANY

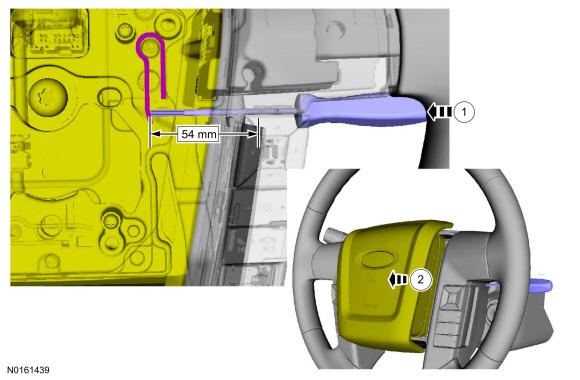

  1. 7.

    Detach the driver airbag from the steering wheel.

    1. 1.

      Push in on the hexagonal screwdriver, disengaging the spring clip from the driver airbag retainer.

    1. 2.

      Pull the driver airbag out.
GFD137994Courtesy of FORD MOTOR COMPANY

  1. 8.

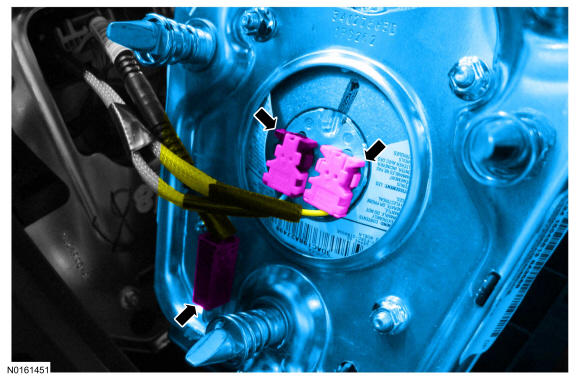

    Disconnect the 2 driver air bag module and 1 horn switch electrical connectors and remove the driver airbag.
GFD137995Courtesy of FORD MOTOR COMPANY

Installation

WARNING: Incorrect repair techniques or actions can cause an accidental pyrotechnic device deployment. Make sure the supplemental restraint and pedestrian protection system (if equipped) is depowered before reconnecting the component. Refer to Supplemental Restraint System (SRS) Depowering and Repowering . Failure to precisely follow depowering instructions could result in serious personal injury from an accidental deployment.

  1. 1.

    Connect the 2 driver air bag module and 1 horn switch electrical connectors.
GFD137995Courtesy of FORD MOTOR COMPANY

  1. 2.

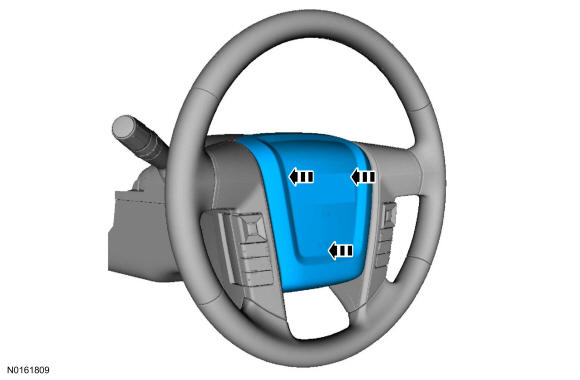

    Align the driver air bag module to the steering wheel, firmly push the driver airbag into the steering wheel and engage the 3 driver airbag retainers to the 3 steering wheel spring clips.
GFD137996Courtesy of FORD MOTOR COMPANY

  1. 3.

    Repower the SRS. For additional information, refer to Supplemental Restraint System (SRS) Depowering and Repowering .
