Front And Rear Axle Boots

WARNING: This page is about a different car, the 2012 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.

Inspect the front axle boots (A) and rear axle boots (B) for deformation, damage or failure. If faulty, replace with new part. < Ref. to FRONT DRIVE SHAFT . > < Ref. to REAR DRIVE SHAFT . >

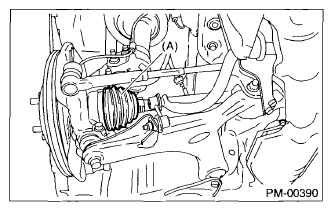

Fig 1: Front Axle Boots

Courtesy of SUBARU OF AMERICA, INC.

Fig 2: Rear Axle Boots

Courtesy of SUBARU OF AMERICA, INC.
