Removal And Installation

WARNING: This page is about a different car, the 2016 Ford Expedition. However, it is still accessible from the selected car via links, so may be relevant.

All vehicles

NOTE: Clean all exhaust connections before reassembly.

1.

Remove the muffler and tailpipe. Refer to Muffler and Tailpipe .

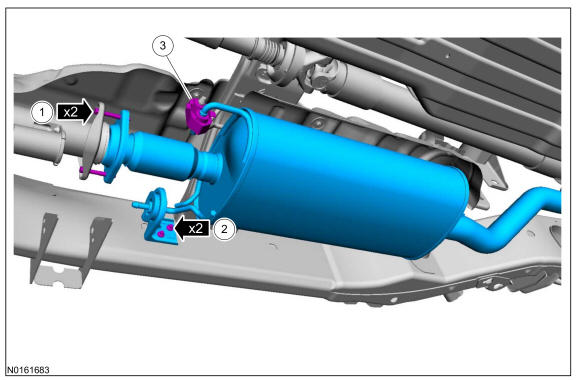

Short wheelbase vehicles (SWB)

2.

Remove the muffler.
- 1.

  Remove the catalytic converter to muffler bolts.
- 2.

  Remove the isolator bracket bolts.
  - Tighten to 25 Nm (18 lb-ft).
- 3.

  Detach the isolator and remove the muffler.

Courtesy of FORD MOTOR COMPANY

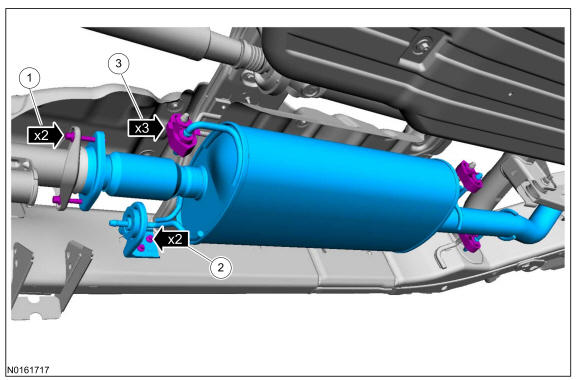

Long wheelbase vehicles (LWB)

3.

Remove the muffler.
- 1.

  Remove the catalytic converter to muffler bolts.
- 2.

  Remove the isolator bracket bolts.
  - Tighten to 25 Nm (18 lb-ft).
- 3.

  Detach the isolators and remove the muffler.

Courtesy of FORD MOTOR COMPANY

Installation

1.

To install, reverse the removal procedure.

2.

Check the exhaust system for leaks.
