Oil Pump, Removing And Installing: Removing

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2017 Audi Q5, 2016 Audi Q5, 2015 Audi Q5, 2014 Audi Q5, and 2013 Audi Q5. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Identifying Oil Baffle Bolts

Courtesy of AUDI OF AMERICA, LLC

-- Remove the oil pan lower section, refer to OIL PAN LOWER SECTION, REMOVING AND INSTALLING .

-- Remove the oil baffle -arrows-.

-- Pull the chain tensioner spring using the Elbow Assembly Tool T10118 in direction of -arrow- and secure it with the Chain Tensioner Locking Tool T40265.

Fig 2: Identifying Chain Tensioner Spring, Remove/Install Components

Courtesy of AUDI OF AMERICA, LLC

-- Remove the bolts -arrows- and the oil pump.

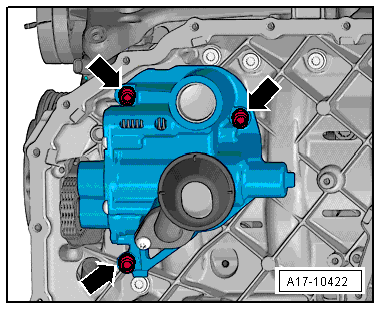

Fig 3: Identifying Oil Pump Bolts

Courtesy of AUDI OF AMERICA, LLC
