Oil Pan Lower Section, Removing And Installing: Installing

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2017 Audi Q5, 2016 Audi Q5, 2015 Audi Q5, 2014 Audi Q5, and 2013 Audi Q5. However, it is still accessible from the selected car via links, so may be relevant.

Silicone sealant, refer to parts.

NOTE:

Note the expiration date of the silicone sealant.

The oil pan must be installed within five minutes after application of silicone sealant.

Replace the bolts which are being tightened with an additional turn.

Replace sealing rings, seals and self-locking nuts.

-- Spray the sealing surface with sealant remover and allow it to work.

-- Remove any sealant residue on the upper section of the oil pan using a flat blade scraper.

WARNING:

Danger of eye injury.

Wear protective eyewear.

-- Remove sealant residue on the lower part of the oil pan -1-, for example with a rotating plastic brush.

Fig 1: Cleaning Sealing Surfaces

Courtesy of AUDI OF AMERICA, LLC

-- Clean sealing surfaces, must be free of oil and grease.

-- Cut the tube nozzle at the front marking (nozzle diameter: approximately 3 mm).

Fig 2: Cut Tube Nozzle At Front Marking (Nozzle Diameter Approx. 1 Mm)

Courtesy of AUDI OF AMERICA, LLC

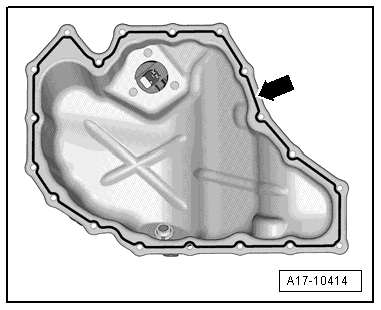

-- Apply silicone sealant on the clean sealing surface of the oil pan lower section as shown in illustration.

Fig 3: Identifying Lower Oil Pan Sealant Bead

Courtesy of AUDI OF AMERICA, LLC

Sealant bead thickness: 2 to 3 mm.

NOTE:

The oil pan must be installed within five minutes after application of silicone sealant.

The sealant bead may not be thicker than specified, otherwise excess sealant could enter the oil pan and clog the oil intake tube.

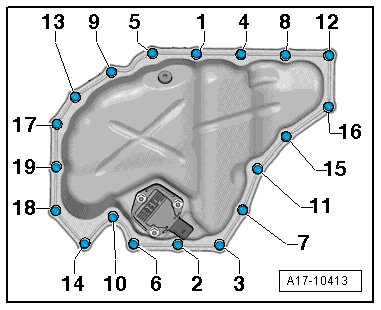

-- Position the lower section of the oil pan immediately and tighten the bolts, tightening sequence, refer to Figure.

NOTE:

After installing the oil pan, allow the sealant to dry for approximately 30 minutes. Only after then may the engine oil be replenished.

-- Fill the engine oil and check the oil level, refer to ENGINE OIL LEVEL, FILLING AND CHECKING .

-- Install the steering gear, refer to HYDRAULIC POWER STEERING GEAR, REMOVING AND INSTALLING (LHD) .

-- Install the stabilizer bar, refer to STABILIZER BAR, REMOVING AND INSTALLING .

-- Install the subframe crossbrace, refer to SUBFRAME CROSSBRACE, REMOVING AND INSTALLING .

-- Install the wires, refer to appropriate SYSTEM WIRING DIAGRAM.

Hybrid Vehicles

-- Install the torque support and crossmember, refer to TORQUE SUPPORT AND CROSSMEMBER, REMOVING AND INSTALLING .

Continuation for All Vehicles

-- Install the noise insulations, refer to OVERVIEW - NOISE INSULATION .

Further installation is done in the reverse order of removal.
