Oil Separator, Removing And Installing: Removing

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2017 Audi Q5, 2016 Audi Q5, 2015 Audi Q5, 2014 Audi Q5, and 2013 Audi Q5. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the left engine mount, refer to ENGINE MOUNT, REMOVING AND INSTALLING .

-- Loosen the hose clamps -arrows- and remove the air guide hose.

Fig 1: Identifying Air Intake Hose Components

Courtesy of AUDI OF AMERICA, LLC

NOTE:

Ignore item -1-.

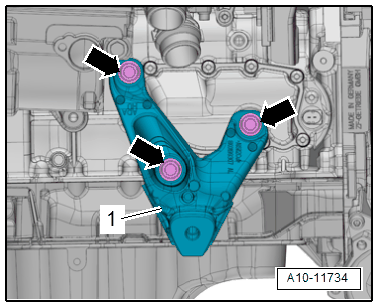

-- Remove the bolts -arrows- and the left engine support -1-.

Fig 2: Identifying Bolts

Courtesy of AUDI OF AMERICA, LLC

-- Remove the oil separators -1 through 9-.

Fig 3: Identifying Oil Separator Bolt Tightening Sequence

Courtesy of AUDI OF AMERICA, LLC
