Backrest Heating Element, Assembly Overview, Comfort Seat

WARNING: This page does not describe the selected car, but rather 13 other vehicles, including the 2017 Audi SQ5, 2017 Audi Q5, 2016 Audi SQ5, 2016 Audi Q5, and 2015 Audi SQ5. However, it is still accessible from the selected car via links, so may be relevant.

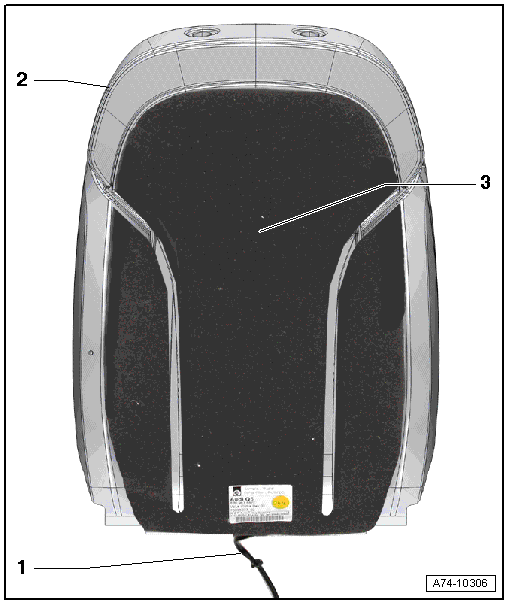

Fig 1: Identifying Backrest Heating Element, Comfort Seat
GWWA74-10306Courtesy of AUDI OF AMERICA, LLC
  1. Line
    • Permanently attached to the heating element
  2. Cushion
    • For the backrest
  3. Backrest Heating Element
