Backrest Heating Element -Z7- / -Z9-, Removing And Installing, Comfort Seat: Removing
WARNING: This page does not describe the selected car, but rather 13 other vehicles, including the 2017 Audi SQ5, 2017 Audi Q5, 2016 Audi SQ5, 2016 Audi Q5, and 2015 Audi SQ5. However, it is still accessible from the selected car via links, so may be relevant.
-- Disconnect cover from upholstery. Refer to BACKREST COVER AND CUSHION, SEPARATING .

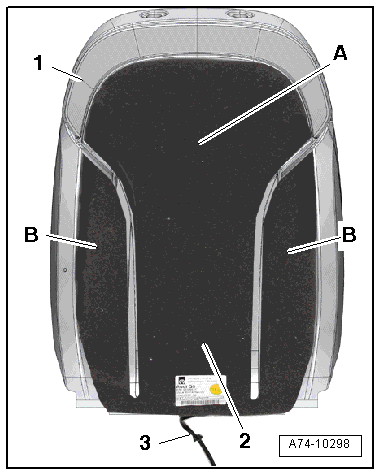

-- Cut the wire -3- off directly at the old heating element -2-.
-- Loosen the heating surfaces -A- and -B- from the adhesive and remove.
NOTE:
The spacer fabric must not be damaged.
