Clutch Pedal Assembly Overview

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2013 Audi S5, 2012 Audi S5, 2011 Audi S5, 2010 Audi S5, and 2009 Audi S5. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION:

Impaired Function

The amount of clutch and brake pedal travel must not be decreased by additional floor mats.

NOTE:

Lubricate the various bearing and contact surfaces with grease G 000 450 02.

Make sure that no brake fluid escapes into the footwell or into the plenum chamber or onto the transmission below. If it does, clean the area thoroughly.

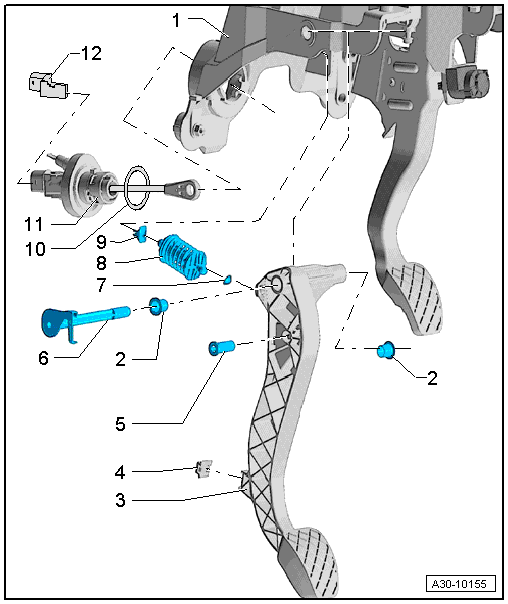

Fig 1: Exploded View Of Clutch Pedal Assembly

Courtesy of AUDI OF AMERICA, LLC

Bracket
- With the brake pedal
- Removing and installing, refer to CLUTCH MASTER CYLINDER
Bearing Bushing
Clutch Pedal
- Removing and installing, refer to CLUTCH MASTER CYLINDER
Clutch Pedal Stop
Mounting Pins
- For clutch master cylinder
Clutch Pedal Mounting Axle
Bearing Shell
- Located in the clutch pedal
Over-Center Spring
- Black side faces toward clutch pedal
- Note the different bearing position in the mounting bracket INSTALLING THE OVER-CENTER SPRING .
- Removing and installing, refer to OVER-CENTER SPRING
- Allocation.
Bearing Shell
- Note the different bearing position in the mounting bracket INSTALLING THE OVER-CENTER SPRING .
Gasket
- Replace
Clutch Master Cylinder
- Removing and installing, refer to CLUTCH MASTER CYLINDER
Clutch Position Sensor -G476-
- Integrated clutch pedal switch -F36- and clutch pedal starter interlock switch -F194-
- Can only be replaced together with the clutch master cylinder CLUTCH MASTER CYLINDER
