Oil Level Thermal Sensor G266 , removing and installing

WARNING: This page is about a different car, the 2008 Audi RS 4 and 2007 Audi RS 4. However, it is still accessible from the selected car via links, so may be relevant.

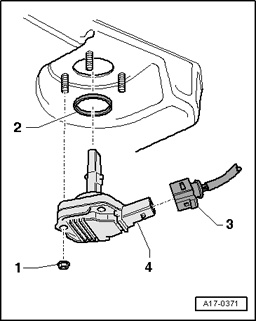

Fig 1: Oil Level Thermal Sensor G266 , Removing And Installing
GW00018467Courtesy of VOLKSWAGEN UNITED STATES, INC.
  1. Nut, 9 Nm
  2. Sealing ring; replace
  3. Electrical harness connector
  4. Oil Level Thermal Sensor G266
