Oil check valve and spray nozzle valve, component overview

WARNING: This page is about a different car, the 2008 Audi RS 4 and 2007 Audi RS 4. However, it is still accessible from the selected car via links, so may be relevant.

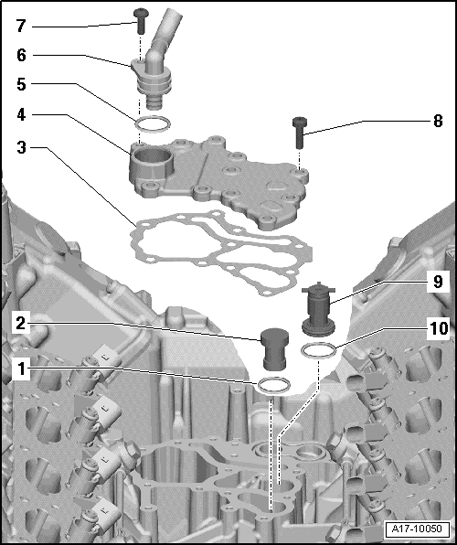

Fig 1: Oil Check Valve And Spray Nozzle Valve, Component Overview

GW00018488

Courtesy of VOLKSWAGEN UNITED STATES, INC.

1 - O-ring

Replace

2 - Spray nozzle valve

Removing and installing → Oil check valve and spray nozzle valve, removing and installing

3 - Gasket

Replace

4 - Cover

5 - O-ring

Replace

6 - Hose

For crankcase ventilation

7 - 7 Nm

8 - 9 Nm

9 - Oil check valve

Removing and installing → Oil check valve and spray nozzle valve, removing and installing

10 - O-ring

Replace
